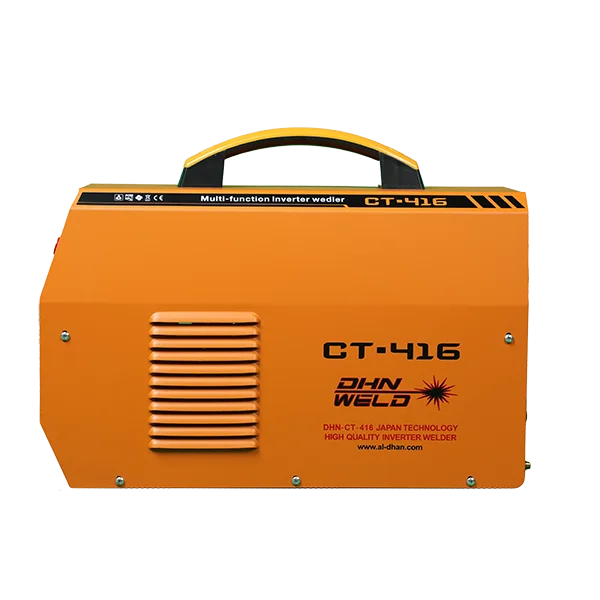

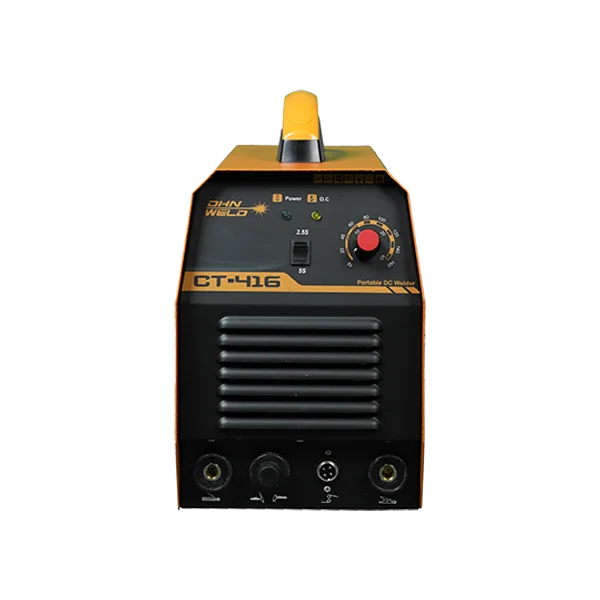

TIG/MMA/CUT 3 IN 1 WELDER
Completed Accessories:
- 1.5M cable with earth clamp
- 2M cable with electrode holder
- TIG TORCH
- CUT TORCH
- AIR pressure reduced regulator
- Mask
- Brush
Description
Information
| Power Voltage |
230V ,50HZ |
|---|---|
| Input power |
4KVA |
| No load loss |
40W |
| Duty Cycle |
60% |
| Input Current |
TIG:26.4A/MMA:34A/CUT 31A |
| Rated output current |
TIG 160A/MMA160A/CUT40A |
| Current adjustment |
TIG10-160A/MMA10-160A/CUT20-40A |
| No load voltage |
TIG62V/MMA62V/CUT260V |
| Welding voltage |
TIG16V/MMA26V/CUT96V |
| Nozzle inside |
CUT 1.2mm |
| Air pressure |
0.4mpa |
| Gas flow |
2-5L/min/CUT 80L/min |
| Max cutting thickness |
1-12mm |
| Arc strike |
TIG:HF/MMA:stratching/CUT: HF |
| Packing |
Carton |
| Gross Weight(KG) |
10 |
| Net Weight(KG) |
9 |
| Dimensions(mm) |
L:525, W:320, H:390 |
